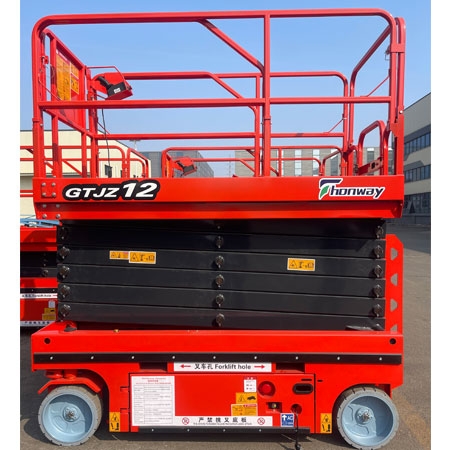

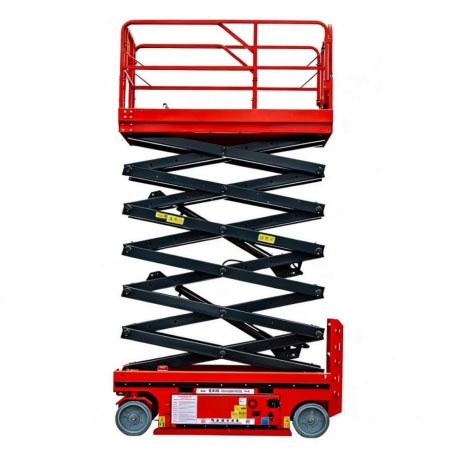

12m Electric self-propelled scissor lift, Maximum working height: 13.8 m, Safe working load 320 kg
For product pricing, customization or other inquiries:
Request for Price
Honway Intelligent Manufacturing Technology Co., Ltd.
-
China
- Manufacturer
-
Website:
honwaylifts.com -
Location:
1418 Tower B, Herui Center, 5001 East 2nd Ring Rd.
Jinan
Shandong
|
HWGTJZ12 |
|
|
Size |
|
|
Work platform size
(length×wide×high) |
2270×1120×1130 mm |
|
Overall dimensions
of the machine (A×B×C） |
2430×1220×2680 mm |
|
Overall dimensions
(length×wide×high, guardrail folded) |
2430×1220×2105 mm |
|
Table extension
size G |
900 mm |
|
Performance |
|
|
Maximum working
height |
13.8 m |
|
Maximum platform
height H |
11.8 m |
|
Safe working load |
320 kg |
|
Extended Platform
safe working load |
113 kg |
|
Minimum ground
clearance |
100/20 mm |
|
Wheelbase |
1.89 m |
|
Turning
radius(inner wheel/outer wheel) |
0.15/2.3 m |
|
Lifting/driving
motor |
24V/4.5 kw |
|
Lifting speed |
6-9 m/min |
|
Machine travel
speed(retracted state) |
3.8 Km/h |
|
Machine travel
speed(lifting status) |
0.8 Km/h |
|
Battery |
Lead acid
maintenance free |
|
Charger |
24V/30A |
|
Max Climb
Capability |
25％ |
|
Maximum allowable
working angle |
1.5°/3° |
|
Tyre |
Non marking solid
tire 381×127 mm |
|
Overall weight |
2700 kg |
- Standard Configuration
- Proportional control
- Automatic brake system
- Charging protection system
- Continuous self-propelled
- Emergency descent system
- Folding fence
- Seamless tire
- Platform self-locking door
- Emergency stop button
- Standard transport forklift holes
- Unidirectional extension platform
- Horn
- Trouble shooting system
- Automatic pit protection system
- Safety maintenance support rod
- Action beeping
- Tilt protection system
- Strobe light
- Oil pipe explosion-proof system
