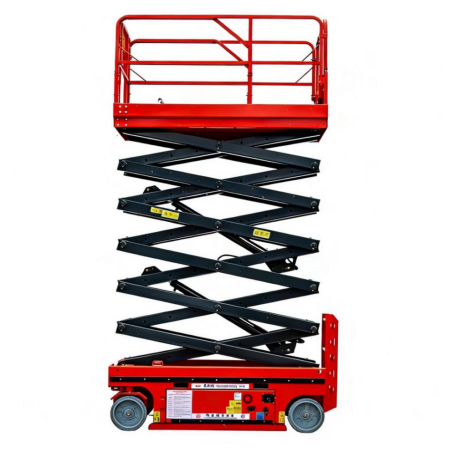

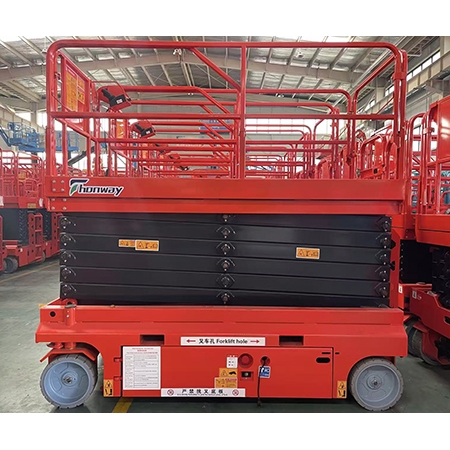

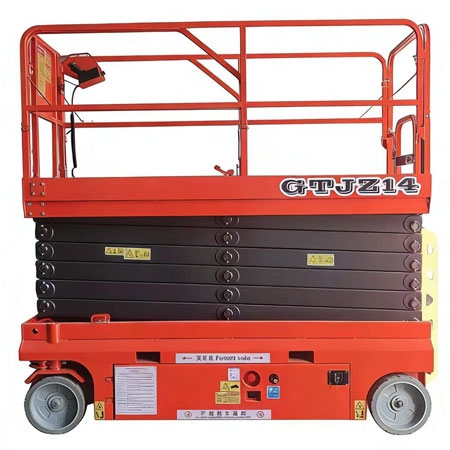

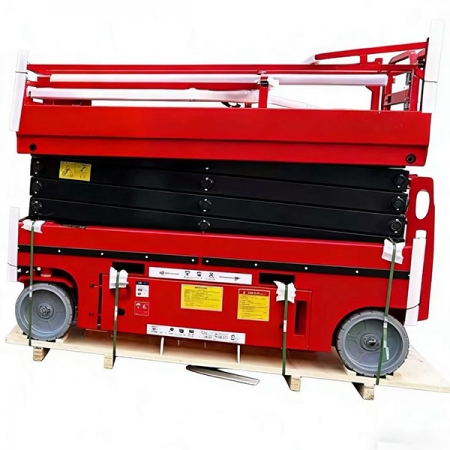

14m Electric self-propelled scissor lift, Maximum working height 15.7 m, Safe working load 227 kg

14m Electric self-propelled scissor lift, Maximum working height 15.7 m, Safe working load 227 kg

Model: HWGTJZ14

Brand: Honway

Country of Origin: China

Sample Available: No

For product pricing, customization or other inquiries:

Request for Price

Honway Intelligent Manufacturing Technology Co., Ltd.

China
Manufacturer
Website:
honwaylifts.com
Location:
1418 Tower B, Herui Center, 5001 East 2nd Ring Rd.
Jinan
Shandong

View Supplier's Profile

14m Electric self-propelled scissor lift HWGTJZ14

The self-propelled scissor lifting platform has an automatic walking function, and the whole machine is designed as a whole, which can operate flexibly in a small space. Built-in battery power supply, hydraulic drive and battery power combined, strong power, low noise, to meet different working states, no need for external power supply, no need for external traction can be lifted and lowered freely, the operator only needs to master the equipment control handle to complete the equipment forward, backward, steering, fast, slow walking and lifting and other actions.

This equipment is flexible in movement, easy to operate, labor-saving, labor-saving to make high-altitude work more convenient and fast, is the ideal aerial work platform for efficient and safe production of modern enterprises, the tires are polyurethane non-marking tires, which are not easy to scratch the floor when used in high-end shopping malls. The battery is a lead-acid maintenance-free battery, with a large capacity to increase the use time of the equipment, strong power and strong endurance.

The equipment is made of high-quality thickened steel to increase the support strength of the equipment, and comes with an overload protection system, tilt protection system, and pothole protection system, making the equipment safer and more reliable during use. The equipment is equipped with an upper and lower control system, and the upper control can operate the equipment to lift, walk, and steer.

People can also operate the equipment to lift while standing on the ground. The equipment is also equipped with maintenance support to increase safety protection during maintenance. The paint surface adopts electrophoresis technology, and the coating of electrophoretic paint can make the inner cavity, weld, edge of the workpiece and other weak parts of the traditional coating method can also get good coating protection, so that the overall corrosion resistance of the product is significantly improved, and it is not easy to fade for a long time, which can greatly extend the service life of the product and improve the product grade.

HWGTJZ14
Size
Work platform size (length×wide×high)	2640×1120×1130 mm
Overall dimensions of the machine(A×B×C）	2800×1390×2670mm
Overall dimensions (length×wide×high, guard rail folded)	2800×1390×2096 mm
Table extension size G	900mm
Performance
Maximum working height	15.7 m
Maximum platform height H	13.7 m
Safe working load	227 kg
Extended Platform safe working load	113 kg
Minimum ground clearance	100/20 mm
Wheelbase	2.26m
Turning radius (inner wheel/outer wheel)	0.15/2.85 m
Lifting/driving motor	24V/4.5 kw
Lifting speed	6-9 m/min
Machine travel speed (retracted state)	3.5 Km/h
Machine travel speed (lifting status)	0.8 Km/h
Battery	Lead acid maintenance free
Charger	24V/30A
Max Climb Capability	25％
Maximum allowable working angle	1.5°/3°
Tyre	Non marking solid tire 381×127 mm
Overall weight	3200 kg
