TurboCell PG310, Light Curtain, High-precision obstacle detection, Reliable and fast performance, Easy installation and setup

Model: PG310

Brand: TURBOCELL

Country of Origin: Iran

Payment Terms: T/T, MoneyGram, Western Union

Sample Available: No

For product pricing, customization or other inquiries:

Request for Price

Turbocell elevator

Iran
Manufacturer
Website:
www.turbocell.ir
Location:
Isfahan, Science and Research City, Technology Building 2, Unit 241
Isfahan
Isfahan

Light Curtain

PG310

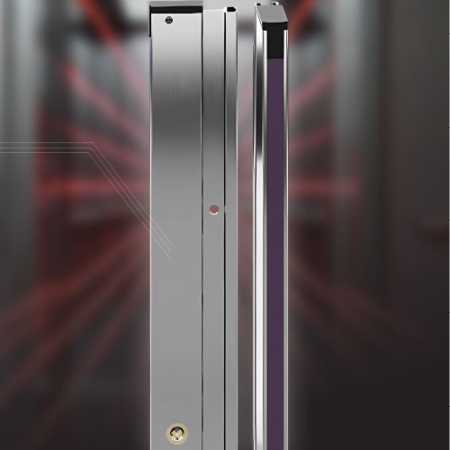

The TurboCell PG310 light curtain is designed with advanced infrared technology to enhance safety in

elevator systems and prevent users from colliding with elevator doors. With its high response speed and

precise detection, this device is an ideal choice for various environments.

Features & Capabilities

Technical specifications

Transmitter (TX) and Receiver (RX) Specifications:
Number of Infrared Diodes	32
Number of Light Beams	154
Highest Detection Point	1800 mm
Lowest Detection Point	20 mm

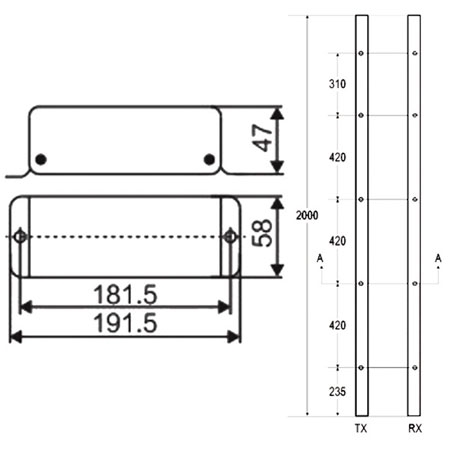

Device imensions	8×35×2000 mm
Operating Temperature: -20°C to +65°C
Response Time	≤100 ms
Resistance to Ambient Light	Up to 100,000 lux

Misalignment Tolerance:
Vertical	±20 mm
Horizontal	±3 mm
Angular	±7°
Protection Class	IP54

Controller Specifications:
Operating Voltage	220VAC
Operating Frequency	50/60 Hz
Current Consumption	≤50 mA
Power Consumption	3 W
Operating Temperature	-20°C to +65°C

Relay Output:
Compatible with elevator control systems
Error indicator with red	LED
Power indicator with yellow	LED
Protection Class	IP31
