TURBOCELL, PG302 - Load sensor under cabin, Maximum Load Capacity 1500 kg
Model:
PG302
Brand:
TURBOCELL
Country of Origin:
Iran
Payment Terms:
T/T, MoneyGram, Western Union
Sample Available: No
For product pricing, customization or other inquiries:
Request for Price
Turbocell elevator
-
Iran
- Manufacturer
-
Website:
www.turbocell.ir -
Location:
Isfahan, Science and Research City, Technology Building 2, Unit 241
Isfahan
Isfahan

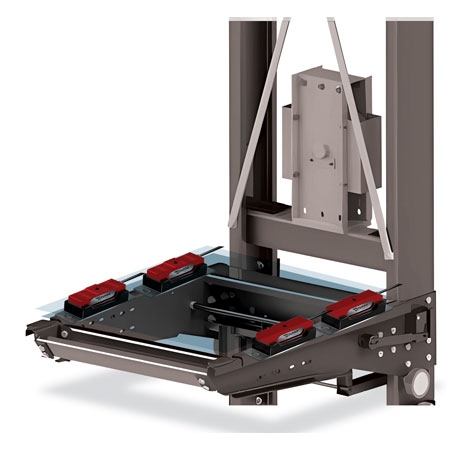

Load sensor under cabin PG302 for under cabin installation
PG302 model comes with four sensors that are installed underneath the cabin. The sensors are initially connected to one another and then send signals to the controller to measure weight and perform calibration
The controller of PG302 is equipped with three relay outputs and an analog output. These outputs provide precise passenger weight data to the control panel, leading to reduced energy consumption and improved elevator movement
PG302 Data sheet
Specifications
Specifications – Junction Box
|
Output Cable Length |
4 meters |
|
Operating Temperature |
-20°C to +50°C |
|
Body Material |
Plastic |
|
Input Socket |
4-pin Phoenix connector (for each load cell) |
|
Protection Class |
IP54Body |

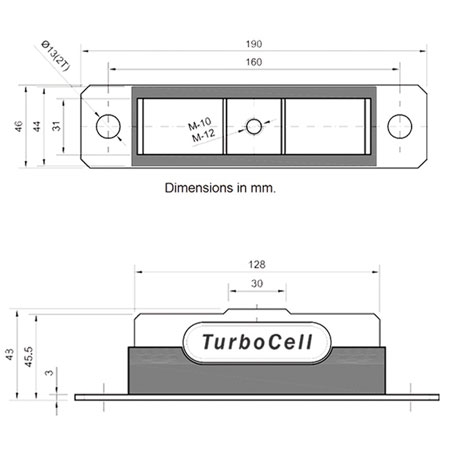

Specifications – Loadcell Sensors
|
Nominal Weight (Per Sensor) |
800 kg |
|
Maximum Load Capacity |
1500 kg |
|
Sensor Excitation Voltage |
≥ 10 V |
|
Output Type |
4-wire load
cell |
|
Sensitivity |
2 ± 0.1% mV/V |
|
Accuracy |
±0.1% FS |
|
Cable Length |
1.5 meters |
|
Protection Class |
IP66 |
|
Operating Temperature |
-20°C to +60°C |
|
Body Material |
Anodized
Aluminum |

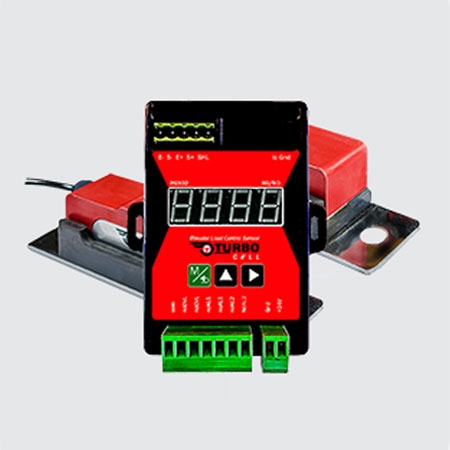

Specifications – Controller
|
Analog Output |
4-20 mA* |
|
Input Voltage |
18-30 VDC
(24V standard) |
|
Max Current Consumption |
Less than 300 mA |
|
Relay Output |
1 / 2* / 3* |
|
Protection Class |
IP54 |
