Marine Travel Lift, Lifting capacity 10-1200t, Span 6-25m, Height 5-25m, Lifting speed 0-3m/min

Brand: HUADELIFT

Country of Origin: China

FOB Port: Tianjin, Qingdao, Shanghai

Payment Terms: L/C, T/T

Sample Available: No

For product pricing, customization or other inquiries:

View Contact Details

Henan Huade Lift Intelligent Equipment Co., Ltd.

China
Manufacturer
Founded: 2016
Total Annual Sales Volume:
US$ 2.5 Million - US$ 5 Million
Number of Employees:
101 - 500 People
Website:
www.huadelift.com
Location:
T11 Building, National 863 Science and Technology Industrial Park, Hongqi District
Xinxiang
Henan

View Supplier's Profile

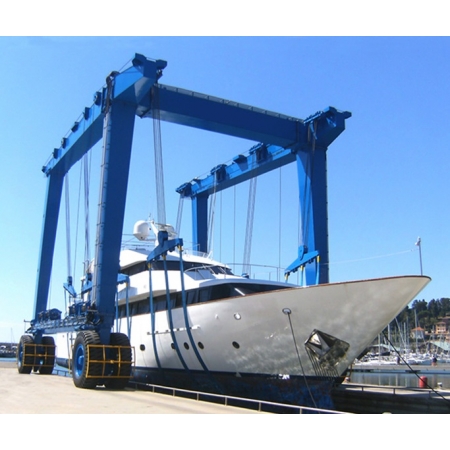

Marine Travel Lift

Lifting capacity: 10-1200t
Span: 6-25m
Height: 5-25m
Lifting speed: 0-3m/min
Travelling speed: 0-40m/min
Operation method: Remote control or cabin

Features of Travel Lift

Huadelift focus on the manufacture & design of marine travel lift. We are committed to creating value for our customers and provide with the most economical and efficient material handling solutions.

A soft and firm belt is used to evenly suspend the forces on the bottom of the boat and prevent damage to its surface and structure.
Hydraulic steering system is controlled by oil cylinder or slewing reducer, less wear and tear on internal components resulting in lower operation and maintenance costs.
Operating modes include 8optional walking functions to meet the requirements of different working conditions, with a 4% climbing capacity.
Self-powered non-standard equipment with good mobility. The lifting mechanism adopts load-sensitive hydraulic system, which can realize simultaneous lifting of multiple lifting points.
The main end beam could adopt articulated design to eliminate the stress caused by uneven road surface during walking.
Steadier engine RPM + proportional control = fuel savings, and can design economic all-electric drive according to customer demand, suitable for small tonnage applications.

Applications

Travel lift crane is a heavy-duty mobile boat crane specifically designed for lifting and moving boats and other heavy objects in marinas, shipyards, and other waterfront areas. Here are some common applications of yacht travel lift:

Boat and yacht lifting
Shipyard operations
Marina and harbor operations
Industrial lifting

Travel Lift Crane Steering Modes

The travel lift crane is meant to lift and transport varied ships quickly and safely. The steering modes of the mobile boat lift crane cover straight travelling, front steering, rear steering, carousel steering, 90° steering, transverse steering, etc.

Advantages

Overall Dimensions: Customizable height and width designs. The variable span design can also be flexibly adjusted according to the width of the boat.
Lifting points: The number and location of lifting points depends on the design of the crane. The movable lifting point is easy to adjust, and multiple lifting points can be kept synchronously lifted.
Lifting mechanism: load-sensitive hydraulic system is adopted.
Travel mechanism: generally adopts full hydraulic transmission system. In the case of small tonnage vessel handling, we offer economical all-electric drive designs if required.
Maximum slope: When fully loaded, the yacht lift crane can travel with a maximum slope of 4%.
Steering mode: front, rear, straight, oblique, fixed-axis steering, Ackerman steering and other modes to meet different work needs.
Control system: It has two main configurations, including remote control and cab control.
