Elevator Travelling Cable
Brand:
ST CABLE
Country of Origin:
Taiwan
Product Approvals:
UL, CE, VDE
Sample Available: No
For product pricing, customization or other inquiries:
Request for Price
ST Cable Corporation
-
Taiwan
- Manufacturer
- Founded: 1981
-
Website:
www.shentaicable.com -
Location:
2F-6, No. 6, Chung Shing Rd. Sec. 1, Wu Ku District,
New Taipei City

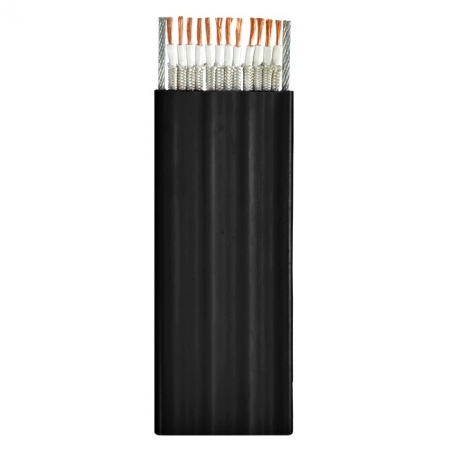

Elevator Travelling Cable
- Size ：0.5mm²～1mm², 18 AWG
- Core：3C～60C
- Conductor：Soft Bare Copper
- Insulation：PVC
- Jacket：PVC
- Shield：Tinned Copper Braid
- Rated Temperature：60℃, 70℃
- Rated Voltage：300V, 500V, 600V
- Standard：UL, ST CABLE
- Application：Elevator travelling cable is a vital link between the elevator car and controller. In conventional elevators, all signal information is transmitted through the travelling cable.
Elevator Cable Feature-UL & cUL ETT / UL ETP Approval：
- UL & cUL ETT / UL ETP Approval.
- Elevator Cable Application：ETT Steel Center & Jute Center traveling cable for elevator or lifts.
- ETP single and stranded types, adding Shielded Pairs, Coaxial etc for options.
- Elevator Cable with steel wires for high travelling speed.
Elevator Cable Feature-VDE / TUV / CCC Approval：
- VDE / TUV / CCC Approval, standards: EN 50214, IEC 60227-6, GB/T 5023.6
- Elevator Cable Types: H05VVH6-F, TVVB flat traveling cable for elevators or lifts.
- Elevator Cable with steel wires for high trolley travelling speed.
- Shielded Pairs, Coaxial can be added.
